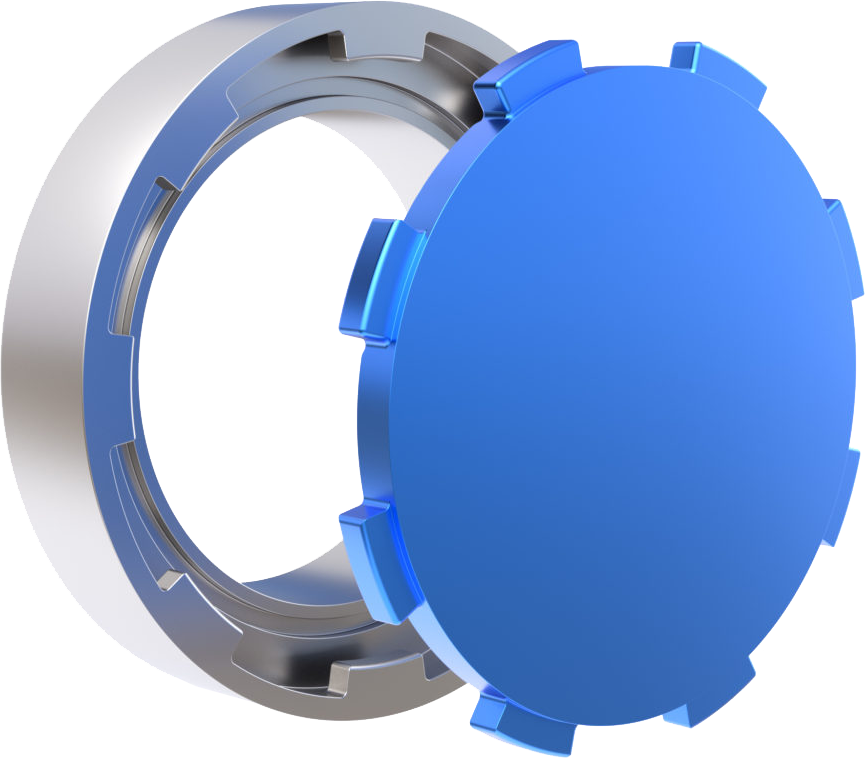

QOC Solutions offers manual quick opening closures with tooth as well as automatic. This type of QOC gets activated through the rotation of a system of teeth which allows the fast opening. The manual rotation uses a rack system, while the automatic one uses a hydraulic piston and pump system.

The recommended sizes for our quick opening closures with tooth go from DN 6’’ to DN 46’’, and the specially recommended rating is the ANSI 150 one, even if the typology can be applied to rating ANSI 600.

Product Information
QOC Nominal Size	From 6″ to 46″
QOC Design Code	ASME VIII Div. 1 / Div. 2 / EN 13445
QOC Design Pressure Rating	Up to ANSI 600
QOC Design Temperature (min/max)	-46°C / +350°C
Qoc Orientation	Horizontal/Vertical
Gasket Seal	Lip seal
Design Conditions
Design Code ASME VIII Div. 1	Yes
Code stamped
Vassel Wall Thickness	Acc. to the vessel
Vessel PWHT
NACE Compliance (MR0175/ISO15156)
Principal Materials
Hub Material	Carbon steel/Stainless Steel/Duplex/Super Duplex
Door Material	Carbon steel/Stainless Steel/Duplex/Super Duplex
Gasket Seal	NBR/HNBR/VITON/KALREZ
Hinge/Davit Material	Carbon Steel / Stainless Steel
Pressure Warning Screw Material	Stainless Steel
Pressure Warning Screw Seal Material	HNBR
Certification
Material Certification	Acc. to EN 10204 2.2/ 3.1/3.2
Non-Destructive Testing
M.P.I. On Weld End Preparation
Dye Penetrant onWeld End Preparation
Ultrasonic Examination	Yes
Other Requirements
Inspection Requirements
ASME U/U2 – Stamp Partial
CE Marking
Finish rough machined
Finish (std)	Sandblasted and coated with zinc rich epoxy primer
Weld Overlay Material
Nickel plating
Final painting according to specification
Cold galvanizing	N.A.
Teflon coating	N.A.
Mechanical Key Interlock

*= APPLICABLE AT REQUEST
